LIVEWIRE SUPERSPORTS MAVERICK
The Livewire Moto E class supersport bike is a project that I collaborated on with Livewire to make a brand strategy about their future Supersports bikes concept.
(The project is Livewire sponsored project, has non affilate with RedBull Racing )
DURATION: 14 WEEKS
SOFTWARE
TIME: 2023 SPRING
DESIGN KEYWORDS
AGGRESIVE
BOLD
BLUR OF MOTION
AGGRESIVE
BOLD
BLUR OF MOTION
SKETCHES
ORTHOGRAPHY OF BIKE
BENCHMARK
FRONT: 12/60 - 17
BACK: 20/69 - 17
WHEELBASE: 1400MM
OVERALL LENGTH: 2010MM
MAX WIDTH: 700MM
MAX HEIGHT: 1200MM
HEIGHT: 1200MM
WIDTH: 700MM
OVERALL LENGTH: 2100MM
WHEELBASE: 1400MM
CAD MODEL (SOLIDWORKS)
PERIOD OF TIME: 85H
MAVERICK
Livewire Maverick is a 2028 Moto E Div II race bike partner with the RedBull Racing team.
MOTOR:
Power Output 110kw/150cv
Torque: 140Nm
Weight: 21kg
INVERTER:
Efficiency up to 99%
Weight: 3kg
BATTERY:
Type: 21700
Weight: 100KG
POWERTRAIN
BRAKE:
Two GP4RR M4 32/36 Calipers with a PR19/18 radial master cylinder
SUSPENSION:
Front: Ohlins FKRT 25/30 fork with 43mm diameter tube
Rear: Ohlins TTX GP Shock absorber stiffness 10
FRAME:
Type: Aluminium Monocoque Front Frame
Weight: 3kg
POWERTRAIN
WHEELBASE: 1450MM
START
LAUNCH CONTROL
ENGINE BRAKE
PIT MODE
TRACTION CONTROL
FUEL MAP
AERODYNAMIC AESTHETIC
AERO KIT DEV
The air spoiler guides laminar airflow and attaches to the surface, creating votices to minize the wake and increase downforce.
HEAT DISSIPATION
When the battery and motor work, it generates heat, the aero kits are designed to solve this pain point by guiding airflow go through these places and cool them down,
DETAIL SHOTS

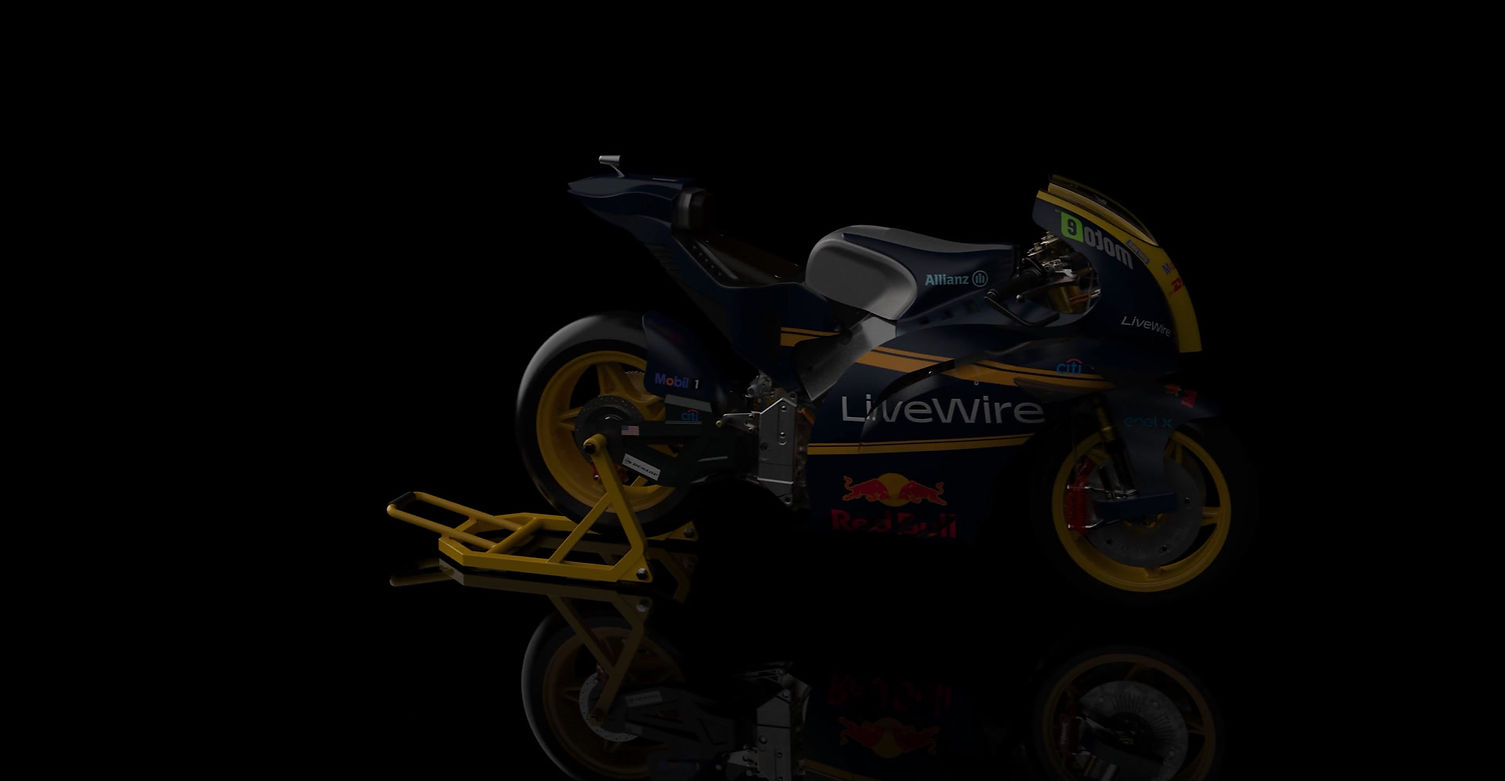

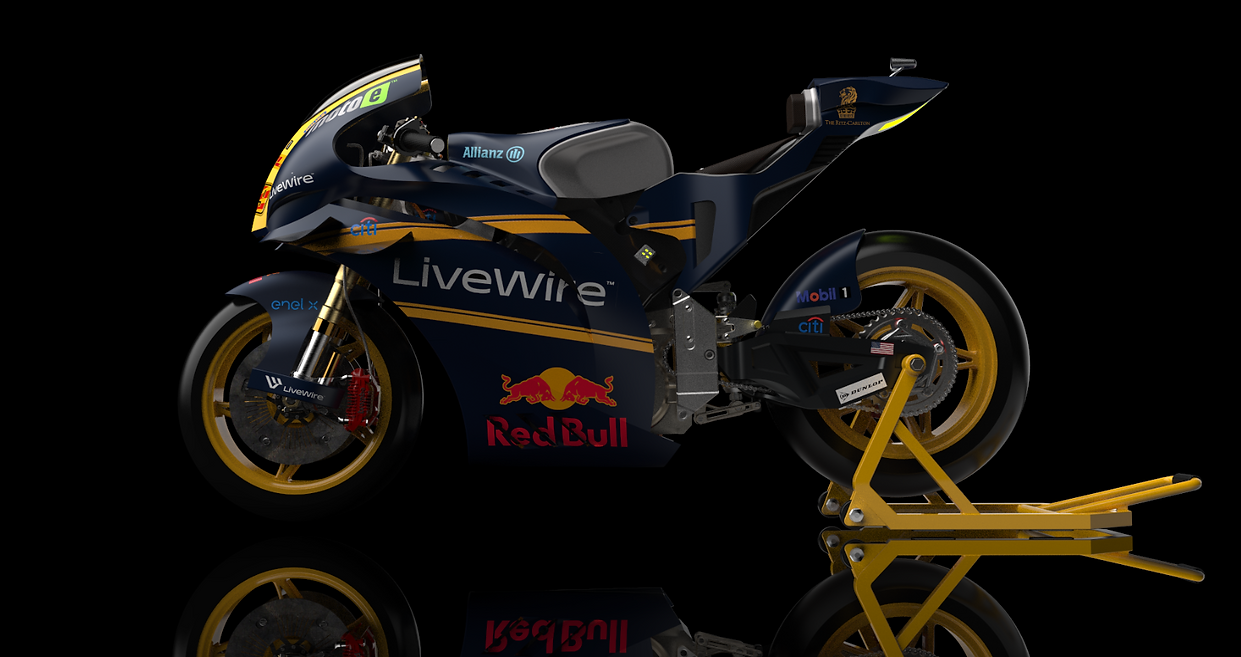

In - situation render and the detail shot of the bike.
LIVEWIRE MAVERICK RACING SUIT
One piece racing suit concept designed for livewire racing team
AIRBAG:
Embedded airbag; electronic control system. protecting the safety of the rider.
KNEE SLIDER:
Made of strong resistance plastic material
MONITOR SENSOR:
The monitor sensor helps to detect riders' status, collect and upload data to the back end server
AERO KIT & DRINKING SYSTEM:
The aero bag on the back gives riders enhanced aerodynamic advantages which reduce the wake and minimize static pressure. and it also serves as a drinking system for riders
